Case study

Holyrood North

Delivering a detailed and complex public realm in a tight urban grain rich in context and identity.

Year
2016
Location
Edinburgh
Category
Education
Client
University of Edinburgh
Value
£3m
Size
1.8Ha
01
Concept

The Vision

The Holyrood Project was developed to meet an unprecedented demand for postgraduate and overseas students travelling to study at the University of Edinburgh.  This demand was conceived to be met through a unique, locally sensitive and historically contextual response that is of global significance.

Taking inspiration from the adjacent volcanic landscape of Arthur’s Seat and Salisbury Crags, the palette of materials, both underfoot and on buildings, is informed by both the immediate context and the desire to create this unique new urban landscape.  The work of James Hutton, regarding the Salisbury Crags, a unifying concept of geology and geomorphology is played out across various public realm elements giving the site its own identity within the wider Old Town context. These linked elements include drainage, paving, seating and wall details.  The historic boundary wall on Holyrood Road acts as the public face of this identity by reusing existing stone into a contemporary site boundary.

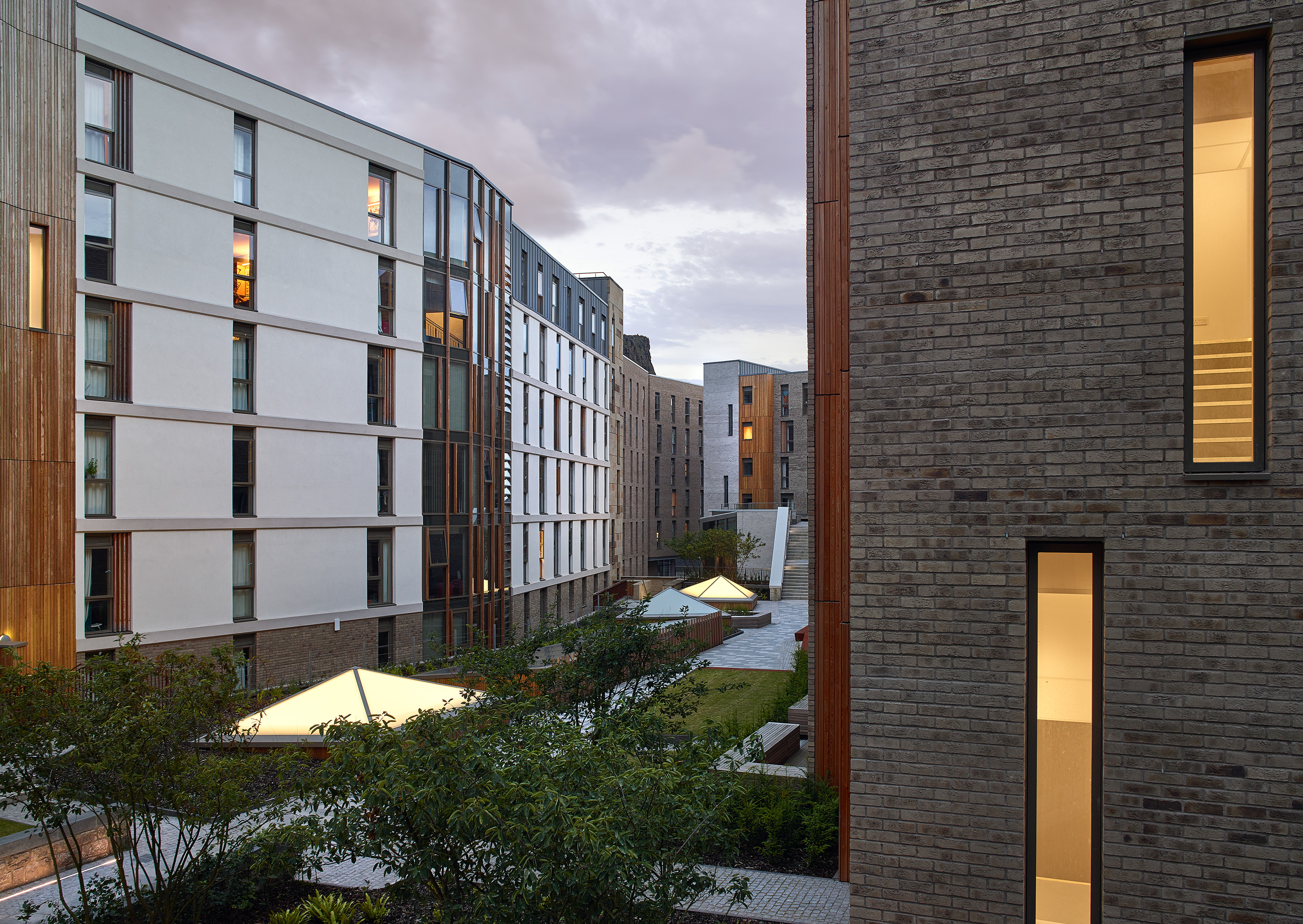

The Pavilion Garden looking south
02
Context

Local Context & International Significance

Within an UNESCO world heritage site, the old town of Edinburgh is an iconic city scape.  Natural light is a valuable design component in such a dense urban environment.  The relationship between light and dark through confined and open space within the old town is a key contributor to the spatial quality that the developed urban form draws on.  The public realm in turn responds to this climate, aspect and colour through appropriate form, materiality and planting.

The light enhances the sense of anticipation, drawing people into spaces & down closes.  This contrast of scale and unexpected light enlightens our experience of the old town and this development in equal measure.  The constant reference of glimpse views between buildings towards familiar Edinburgh landmarks, the Crags or just the original historic built form, provide constant reminders and comfort of context and orientation.

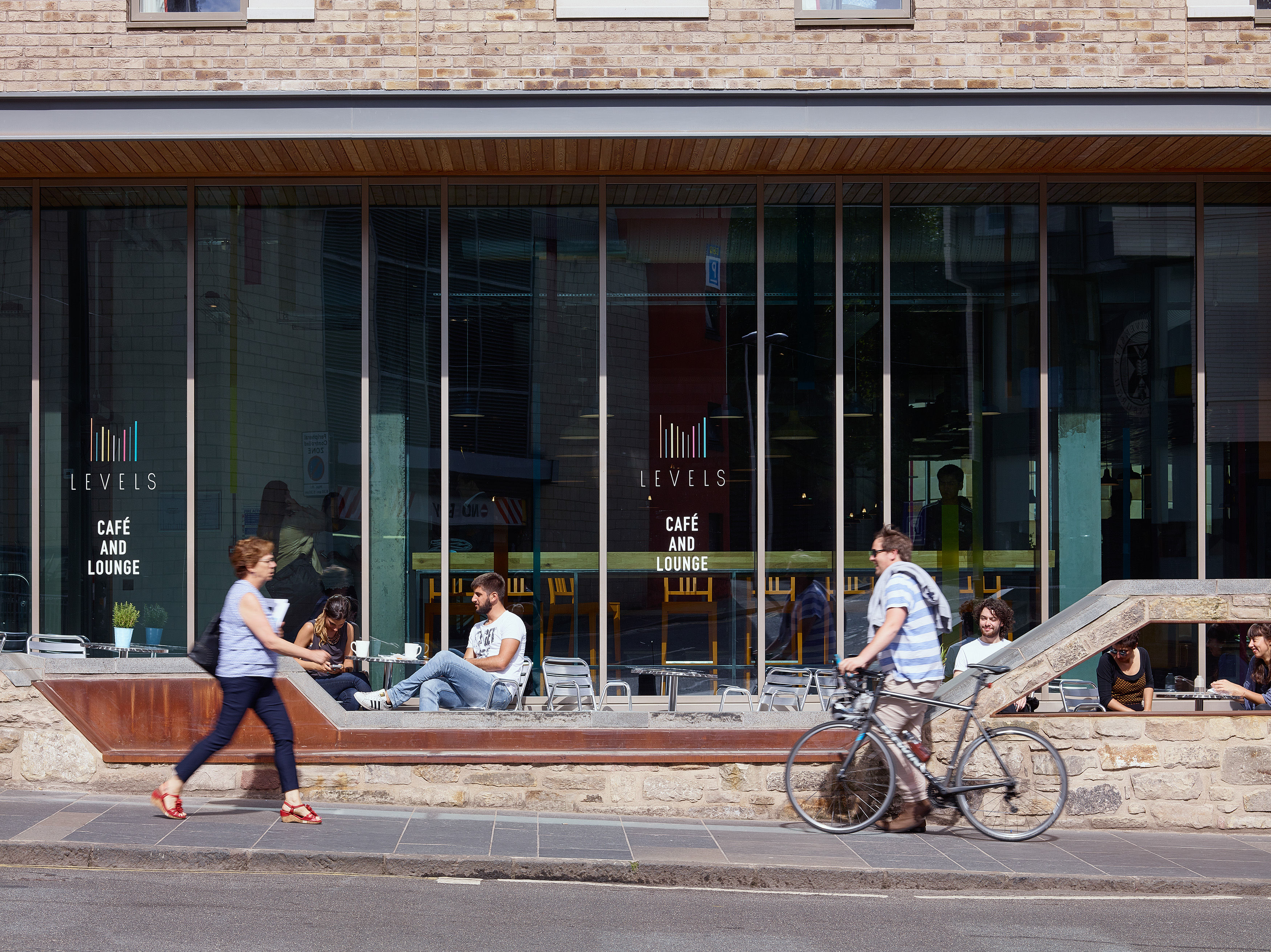

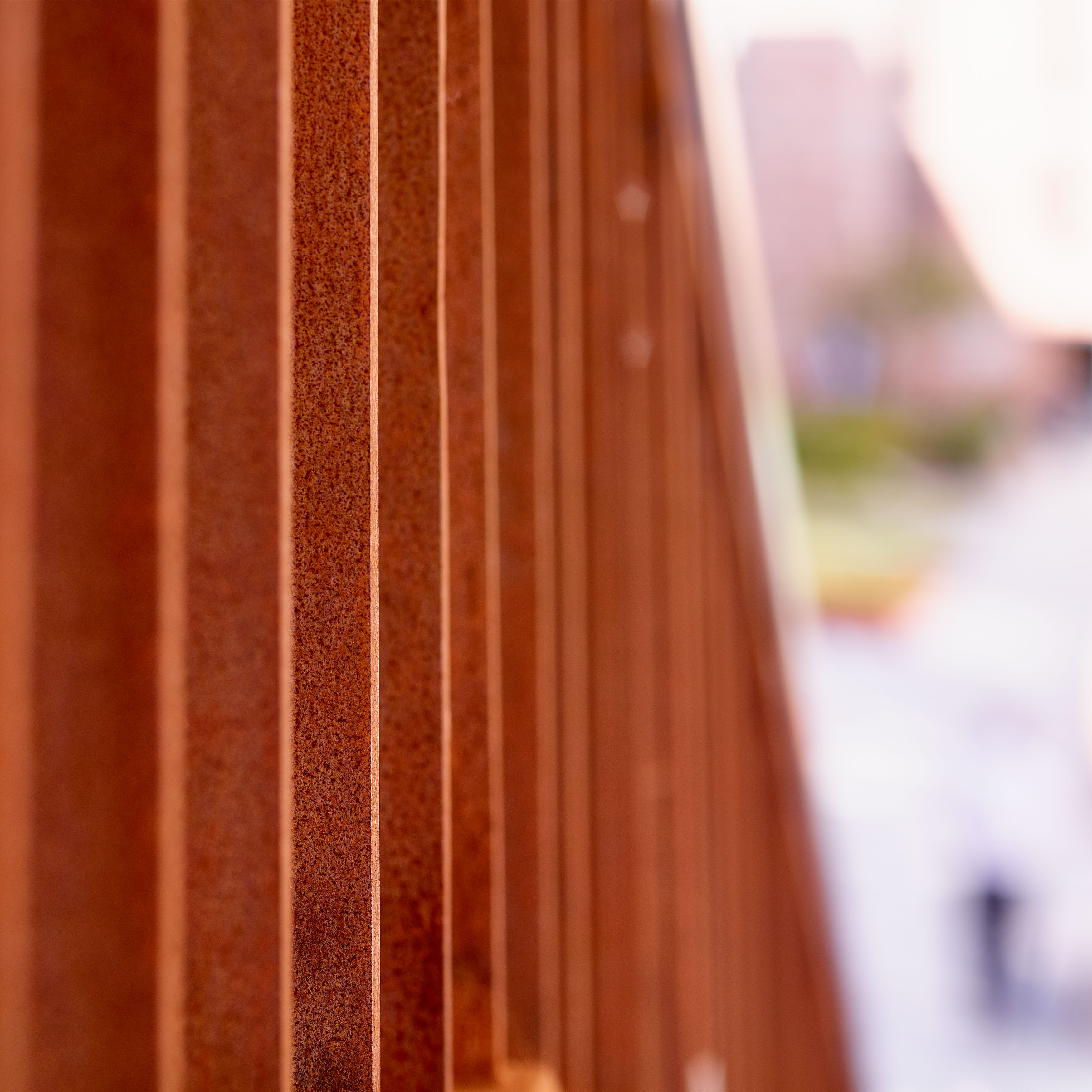

Integration with Holyrood Road streetscape
03
Design

Context and Identity

The campus was a ‘brownfield’ site, an impenetrable city quarter that this project has punctuated by a multitude of routes, views and permeability from the Royal Mile to Holyrood Road.  The steeply sloping site, dropping over 2 storeys across a city block demanded an intricate weave of spaces, pedestrian routes along with entry thresholds, delivery & maintenance access. The adjacent communities and ongoing development both north and south of the site now traverse through the completed high-quality public realm.

This characteristically tight grain and steeply stepped site of the old town did significantly challenge the external environments’ ability to deliver a modern student facility. The design solutions capitalised by delivering a slow-flow, shared surface, and public realm that maximises use and integrated facilities to reduce clutter.  Furniture is kept to a minimum, and waste collection facilitated by subterranean or internal stores to prevent the street level proliferation of wheelie-bins.

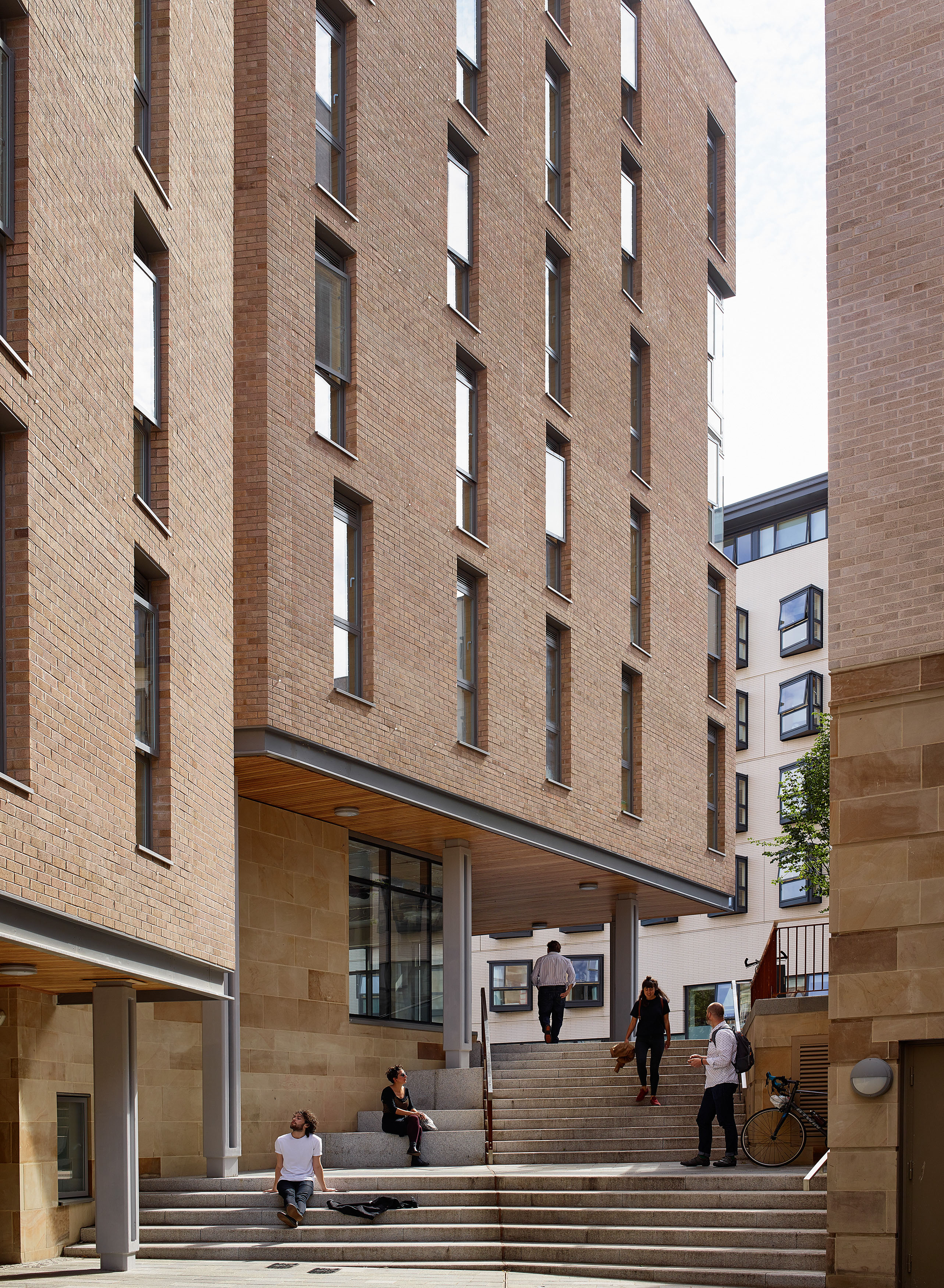

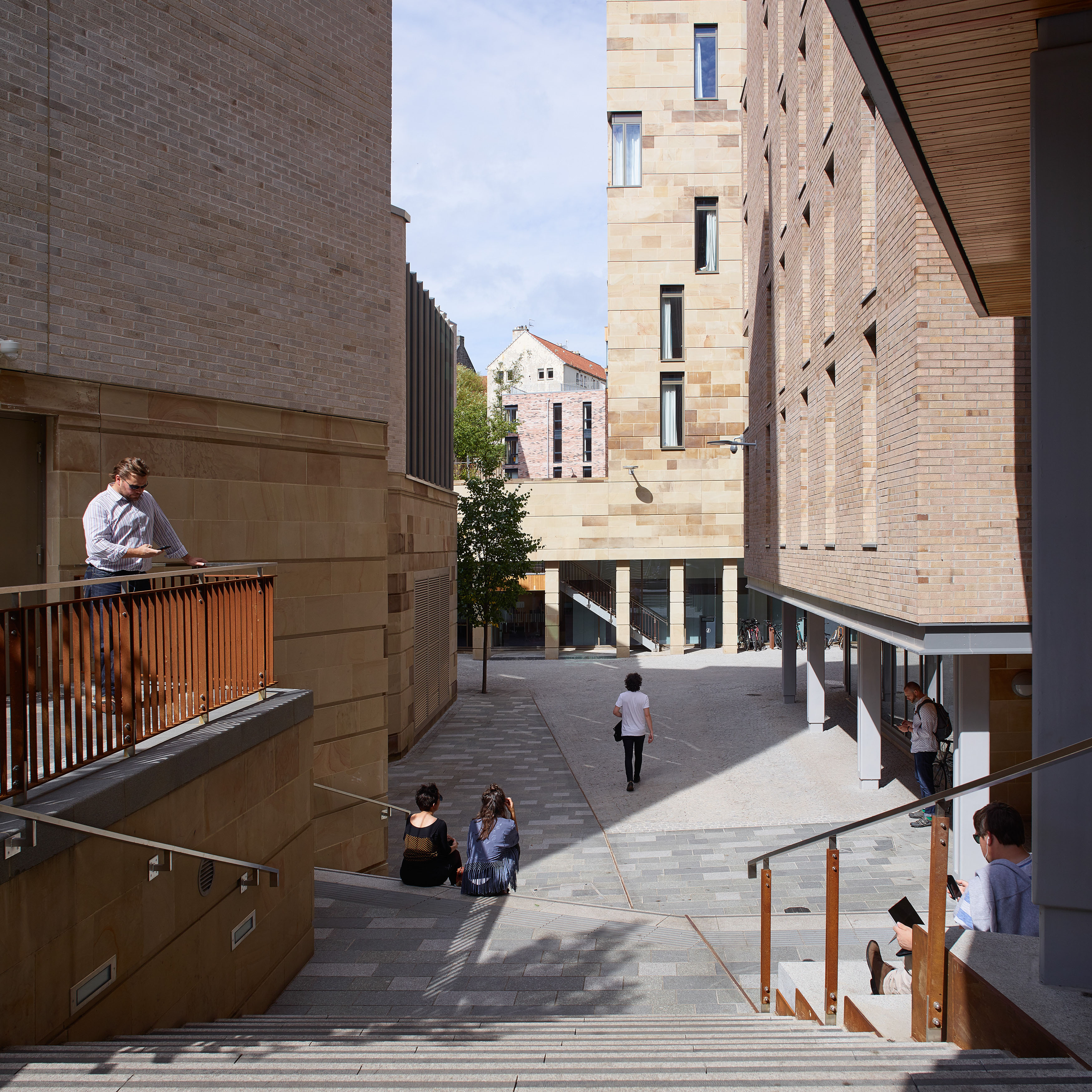

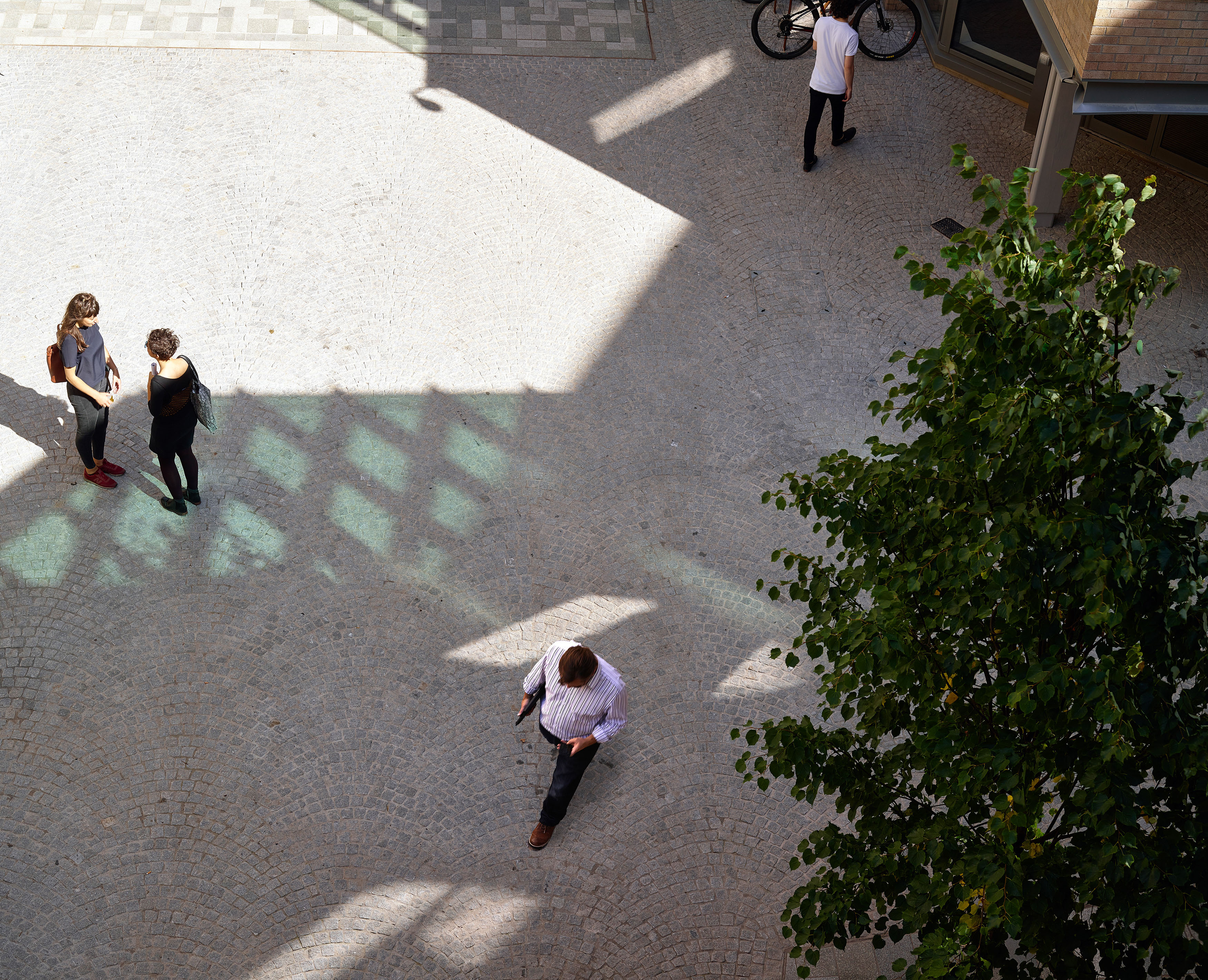

Tight urban network
04
Delivery

Life Cycle costing and Resource Conscious Design

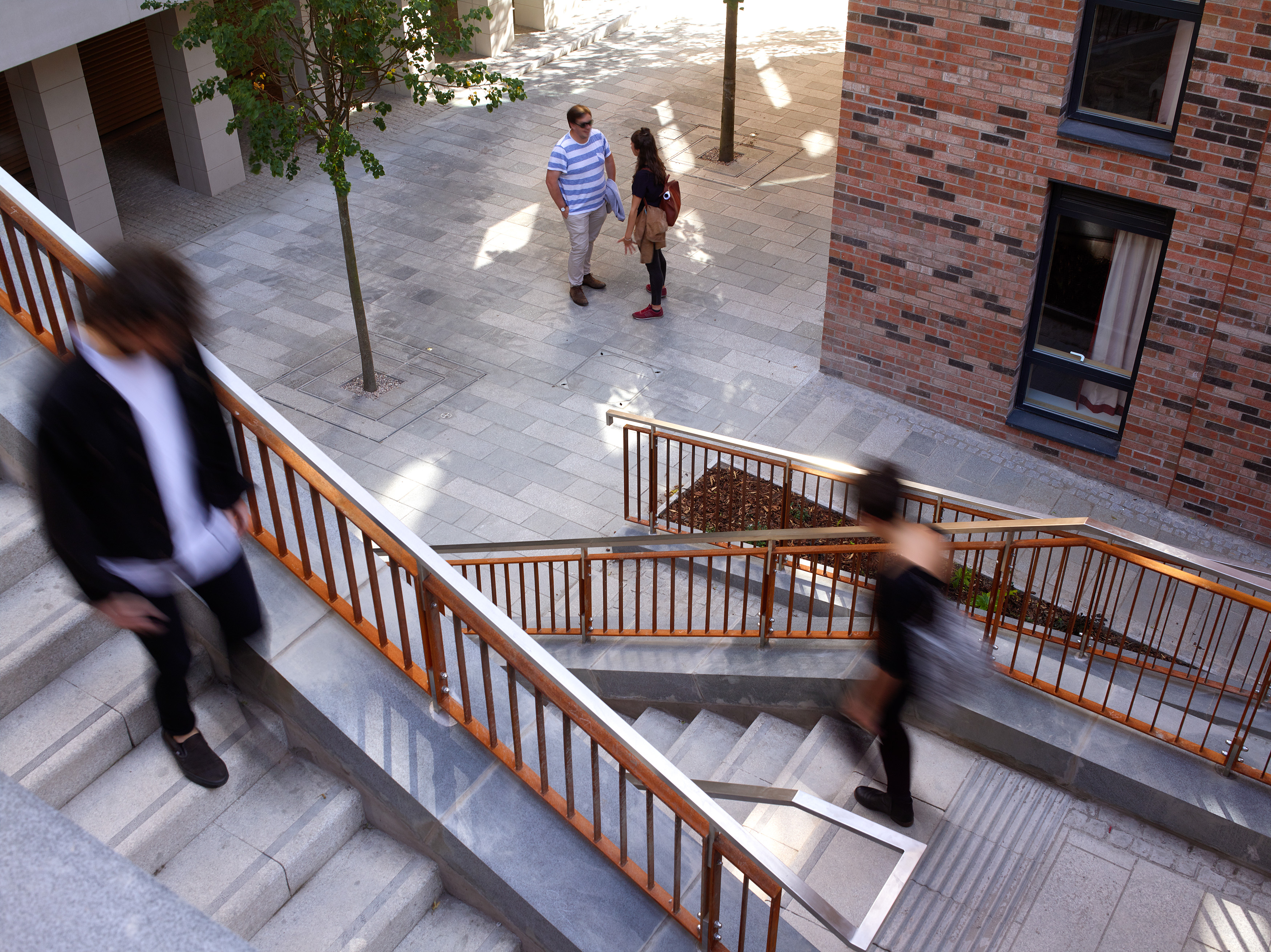

Within the public realm and wider shared surface spaces, life-cycle costing was a critical influence on the robust detailing, pragmatic design solutions and material choices.  The core concept has guided the material choices and detailing set to be tested by intensive use over a challenging terrain.  The integrated design of large level changes has amplified the need for efficient use of resources, not just a concentration on ‘recycled products’.  Where walls are needed, to facilitate level changes, they are programmed to include a seating element, where steps travers a route, they are appropriately scaled to support incidental seating and congregation, affording a sunny aspect or an inspiring glimpsed view through the urban form.

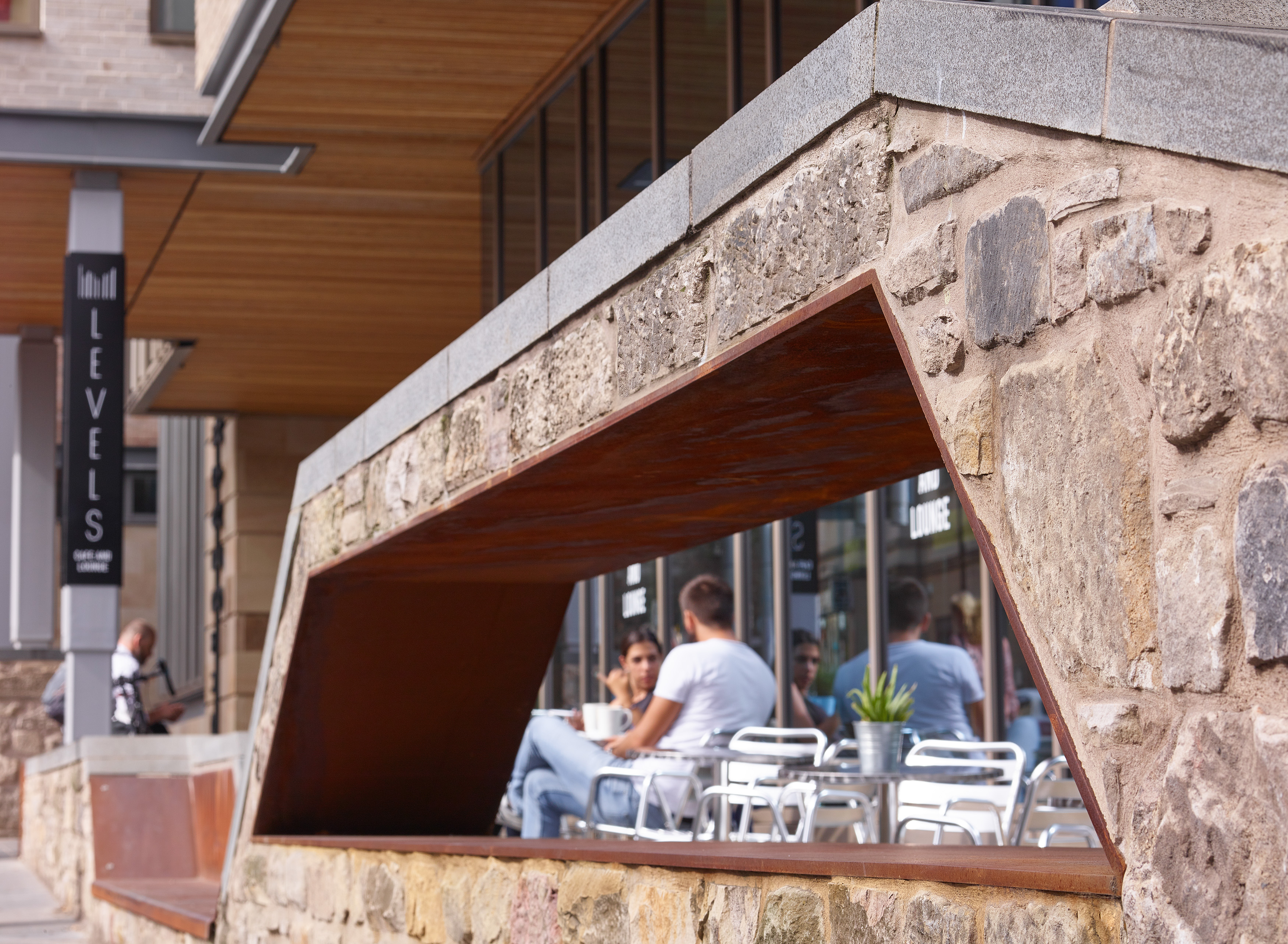

The re-use of site-won materials for the significant public realm walling need was a key consideration identified early in the scheme.  The down takings where subsequently carefully removed from site and stored.  Working with a local stone mason it re-purposed to provide the supporting context to the paving and other external elements and celebrated at the front of the site with the contemporary interpretation of the boundary walling to Holyrood Road.

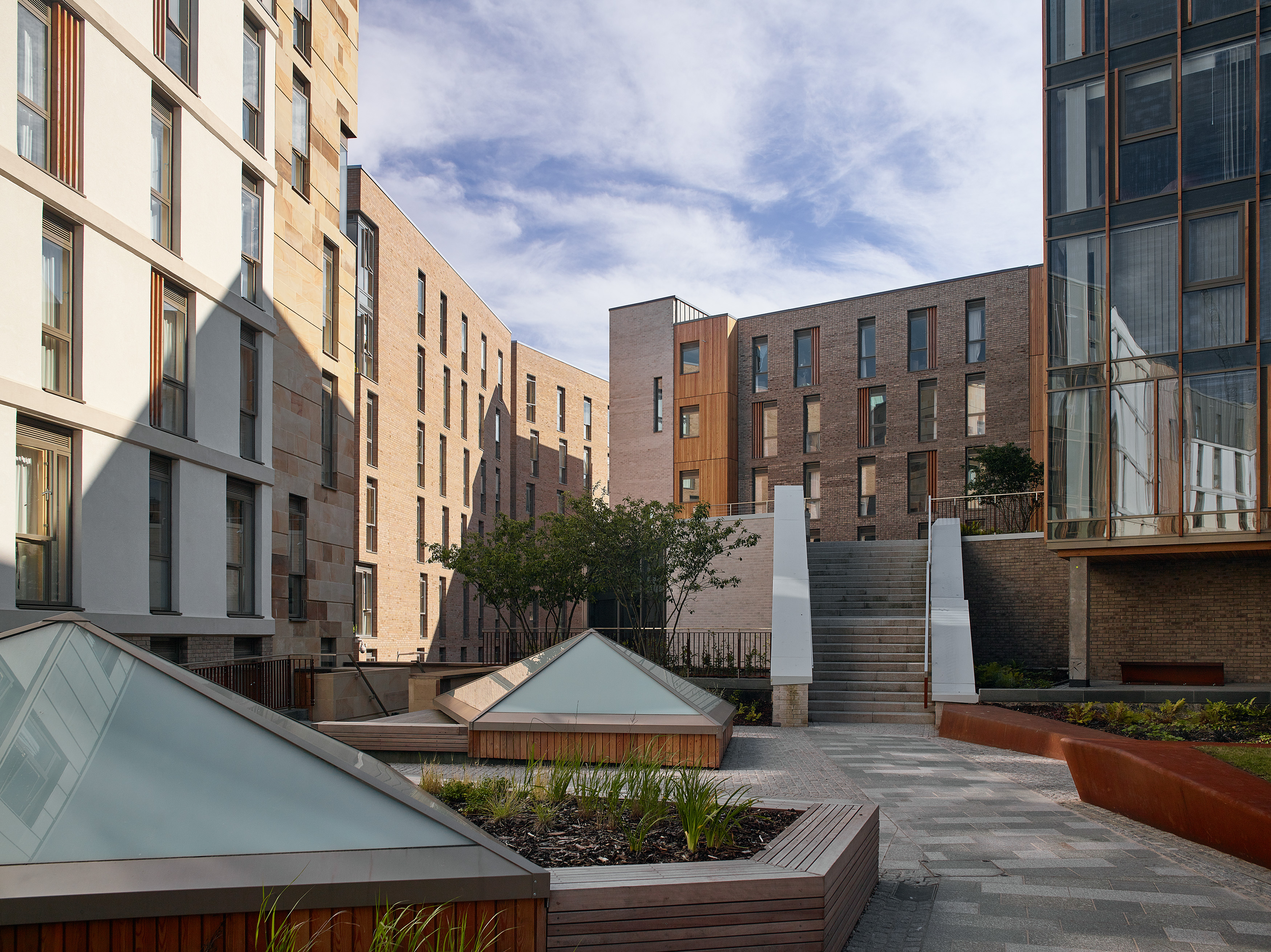

High quality courtyards
05
Planting and Biodiversity

Colour and texture

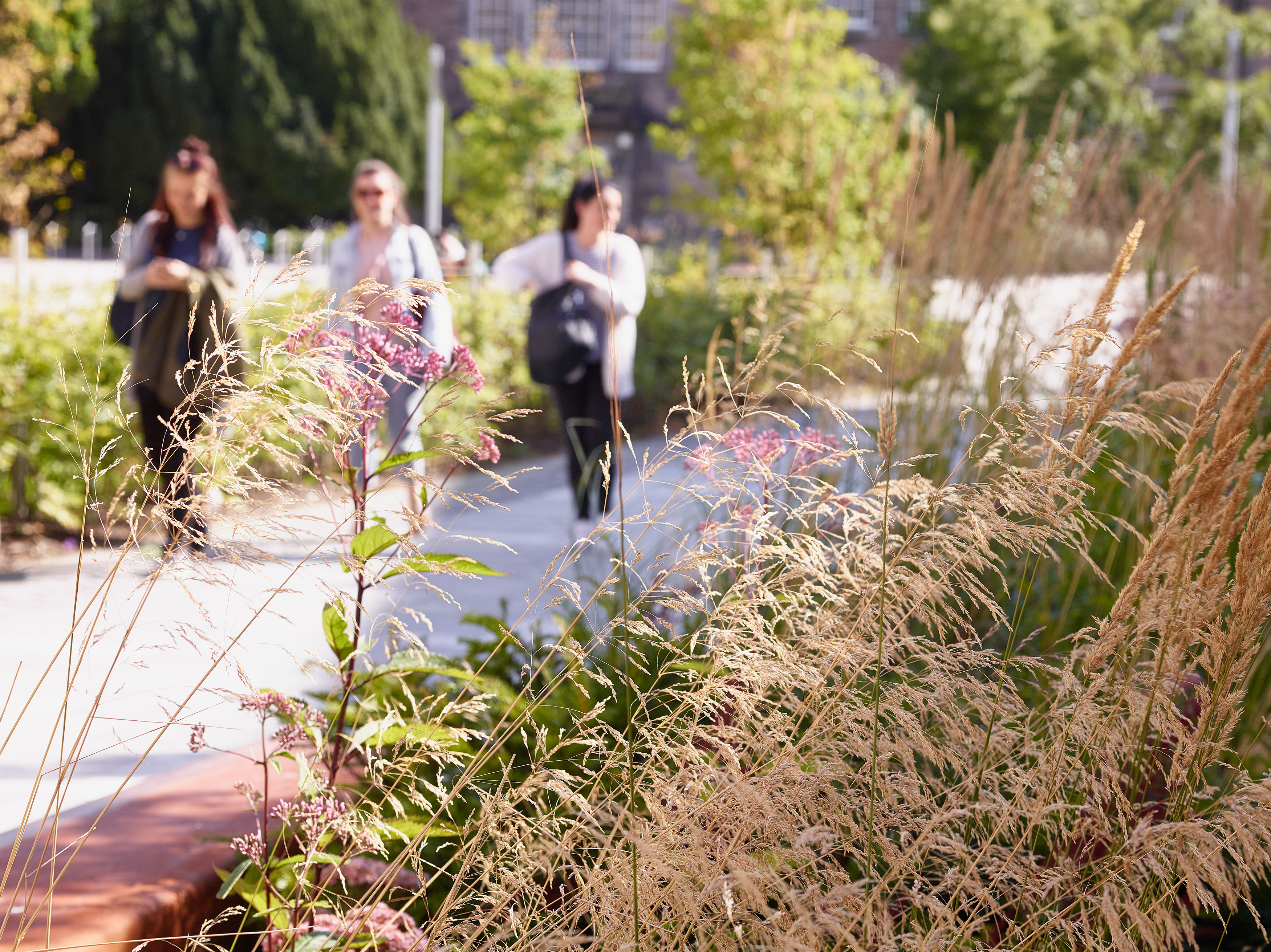

Our design ecologist was extensively consulted to ensure local biodiversity target species were effectively provided for to increase the ecological benefit to the urban context.  Furthermore, the onward maintenance burden of the planted landscape is considered with a passive irrigation system allowing hard surface run-off to be captured in artificial aquifers to then reused by adjacent planting and soil volumes.  These plantings are confined and not forced into areas that will have restricted light / rainfall.  Extensive green roof systems integrate the habitat networks across the site, while also attenuating and controlling surface run-off and peak discharge volumes.

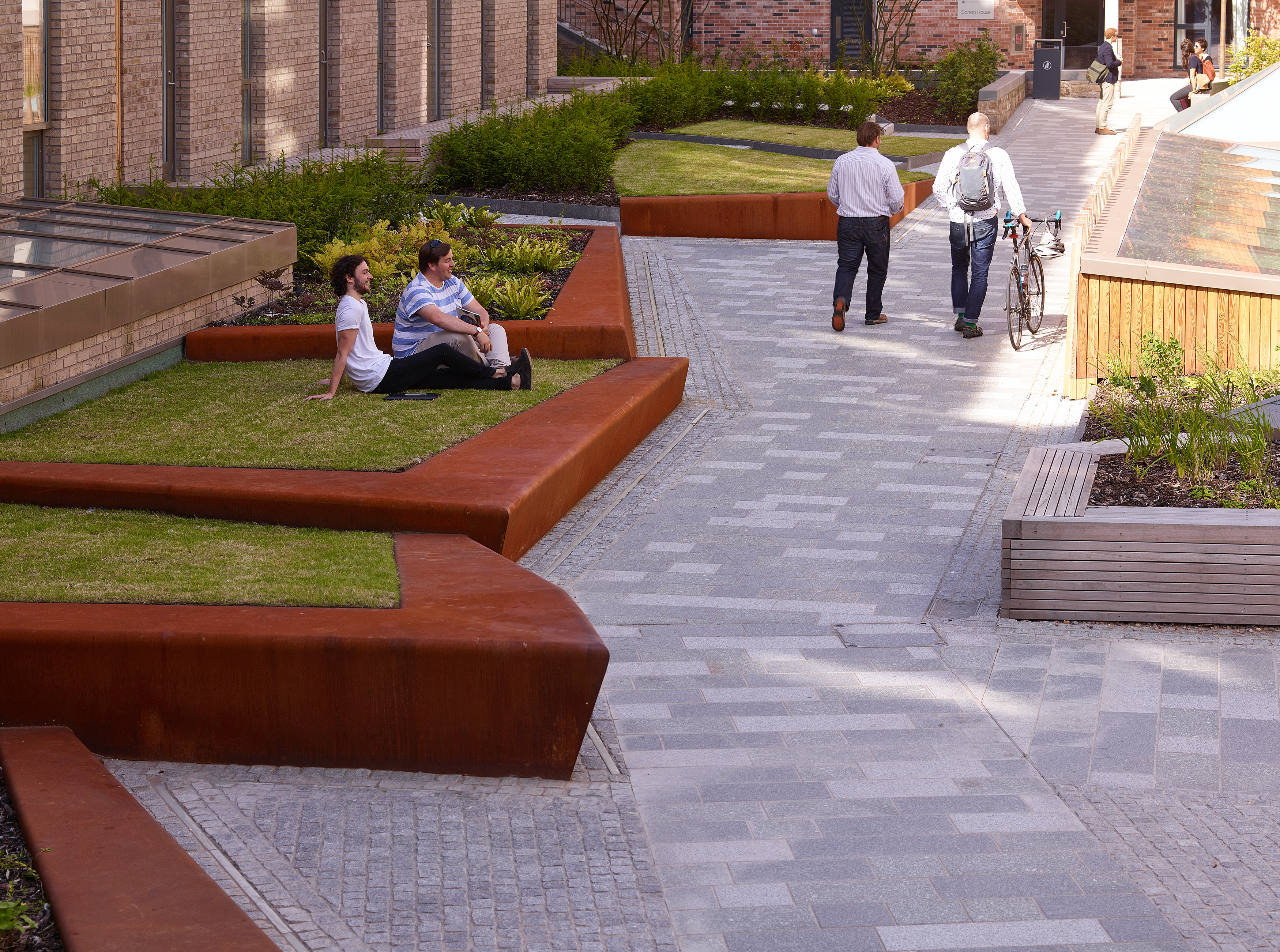

The Pavilion Garden looking north
